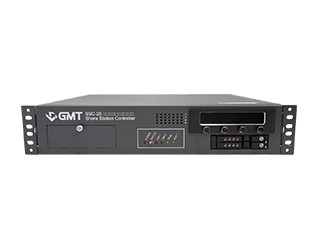

SSC-20 is an all-in-one control equipment to control AIS base station and operate stable base station.  It provides function to interface between AIS Base Station transponder and terminal (terminal for display & control) system.

General

- Power : 220V AC +10%, 50~60Hz (DC 48V included)

- Operation Temp. / Humidity : -15°C ~ +55°C, under 90%

- Indicator: 8 LED(1 x Power, 6 x Serial, 2x Lan)

Interfaces

- GPS Antennas: TNC femail, 50 Ohm

- Networks: 2 x RJ-45 Ethernet

- Serial IO: 2 x RS-232, 4 x RS-422/485

- 2 x USB 2.0

Physical characteristics

- Size: Standard for 19” rack , 2U

- Weight: 9.8kg

Applicable Standards

- ITU-R M. 1371-5, IEC61993-2, IEC61162-1/2

- IALA A-124, IPC-A-610
