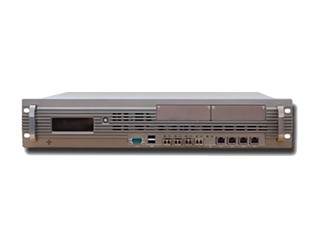

EyeM TIR-600

HOME >Product >Communication >AIS

Specification

EyeM TIR-600 (Target Integration Router-600) is an all-in-one equipment for distributing / providing stable data to users and related systems by collecting / integrating in real time data which is collected from each base station.


General

- AC power: 150W, 100V ~ 240V

- CPU : Core2Duo 2.4GHz

- Memory : ECC 1GB(Max 2GB)

- LAN : 10/100/1000Mbps Ethernet 4Ports

- HDD : SAS 36GB 10K-RPM

- Max Target Processing : 20,000 Targets


Physical characteristics

- Size : 446 x 88 x 420 mm (W x H x D)

- Weight : 5.5 Kg

- 2U Rack Mountable


Electrical Interfaces

- Operating temperature : 0 ~ 40°C (32 ~ 104°F)

- Storage temperature : -20 ~ 75°C (-4 ~ 167°F)

- Operating humidity : 5 ~ 95% @ 40°C non-condensing

- Storage humidity : 5 ~ 95%

- EMI/EMC: FCC Class A Ordering Information

Features

- Real-time location information integration / storage / distribution / management
- Provide standardized protocol conversion and real-time data
- Communication, traffic monitoring by wireless communication network
- Provide data only to authorized users
- Message buffering function
- Messages integration and message data formats converting
- DTF : Double Target Filtering
- Tracking AIS messages and SMS paths
- Broadcast messages by range

References

- 2008~2017  Ministry of Oceans and Fisheries, Republic of Korea- 2010~2016  Korea Navy
