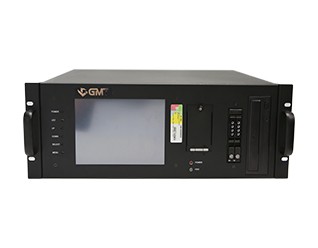

EyeCom-GW is a gateway for interfacing with remote voice signals to the operation center through digital data communication network.
- E1/T1/J1 Port : 1 (Support PRI, MFC R2, SS7, E&M)
- Protocol : SIP(RFC3261)
- Transport Protocol : - UDP, TCP, TLS, SRTP
- DTMF : RFC2833, SIP INFO, In-band
- Codec : G.711(alaw/ulaw), G.722, G.726, G.729A, GSM, ADPCM, Speex
- Echo Cancellation : ITU-T G.186 LEC
- Network Protocol : FTP. TFTP. HTTP. HTTPS. SSH
- PRI switch types : ISDN, Q.SIG
- LAN : 10/100Mbps
- WAN : 10/100Mbps
- Support 2W Voice (transmission, reception mode)
- Support 2W Data Full Duplex mode communication
- Display transmission/reception status
- 2016~2017 4 units installed for National Federation of Fisheries Cooperatives
EyeCom-GW |
|
