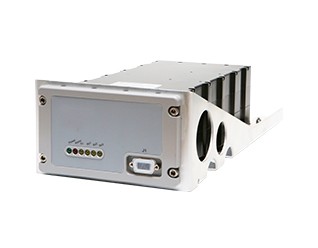

EyeCom-SAR

HOME >Product >Navigation >Aircraft

Specification

EyeCom-SAR is an airborne SAR equipment transmission/receipt of AIS information during the flight.


General

- Power : 21.6 ~ 31.2V DC, 2A
- Transmitter output power : 1 and 12.5W, 50 ohm load
- Bandwidth : 25kHz
- Channel access method : SOTDMA
- Baud rate : 9600 bps (AIS) / 1200 bps (DSC)
- Modulation : GMSK (AIS) / FSK (DSC)
- Frequencies : 156.025MHz ~ 162.025 MHz
- Number of receivers : 2 AIS, 1 DSC
- GNSS receiver : GPS L1, 16 parallel channels
- Operating Temp. : -30℃ to 50 ℃
- Operating Humidity : 1% to 95%
- Size : 165mm(W) x 95mm(H) x 380mm(L)
- Weight : 3.5kg


Interface

- VHF antenna : N type, female, 50 ohm
- GPS antenna : TNC type, female, 50 ohm
- Power : D-sub 9-pole male
- Console : D-sub, 9-pole male
- External Display(RS422) : D-sub 44-pole female, optional RS232
- Data link : D-sub, 44-pole female

Features

- GNSS or external position data transmission
- AIS and DGNSS data reception and process
- PC maintenance and installation
- Application SW for easy set-up and monitoring

References

- Korea Central Fire Service
- Korea National Police
- Korea Coast Guard
