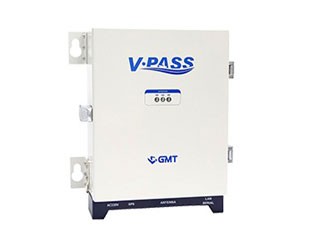

V-Pass BST
V-Pass BST is a land-based device that periodically transmits and receives the position signal of the fishing boat by using the transmitter / receiver module installed inside of the equipment using the frequency of 897.925MHz band.
- Reception Frequency : 897.925MHz
- Reception Sensitivity : below -117dBm
- Transmission Output : below 3W
- RF Input Impedance : 50 Ohm
- Input VSWR : below 1.5dB
- Connector Type : N-Type
- Output Code Format : NRZ
- Data Rate : 6.4kbps
- Demodulation : FM
- External communication : SERIAL(RS-232), LAN
- Dimension : 230mm × 320mm × 100mm
- 2nd V-Pass Integrated Monitoring System for 21,000 Fishing Boats (Korea Coast Guard, 2013)
- 3rd V-Pass Integrated Monitoring System for 10,000 Fishing Boats (Korea Coast Guard, 2014)
- 4th V-Pass Integrated Monitoring System for 26,000 Fishing Boats (Korea Coast Guard, 2015)
