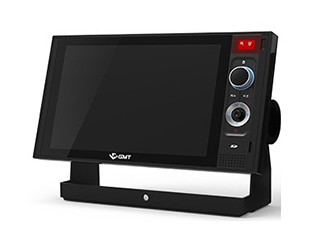

EyeMFD-12
EyeMFD series products are able to be used with any software from users.
General
- OS : Windows embedded compact 7
- Language : English, Korean
- Embedded module : GPS, AIS receiver
- Interface : Sonar sensor, V-Pass
- Power : 9~30VDC, 2A~4A
Display
- 12" Wide Color touch LCD
- Size : 152.4 x 91.4 mm
- Resolution : VGA 1280 x 800 pixels
- Brightness : 1,000 ㏅/㎡ (typical)
- Language : English / Korean
- Display modes : Course plot, Nav Data, GPS status, Fish finder
- Electronic Chart : S-57 International Standard
Interface
- NMEA0183 1 port
- NMEA2000 1 port
- USB 2.0 1 port
- Ethernet LAN 1 port
- SD Card slot 1 (Acceptable up to 32G Bytes)
- V-Pass connection : 8 pin circular male 1 port (RS-232, Power)
- External Audio output 1 port
- Antenna connection : SO-239 (VHF Antenna)
AIS
- Frequency : 161.975MHz (Ch 87B), 168.025MHz (Ch 88B)
- Receiving emission designator : 16KOFD(GMSK)
- Antenna impedance : 50Ω
Environment
- Temperature : -15℃ to 55℃
- Waterproof : IP56
- Highly accurate built-in GPS antenna
- Clean display on 12 inch color LCD with wide view angle
- Multi-window display
- Quick chart drawing speed
- Built-in fish finder module
- Built-in Radar display module
- Built-in AIS receiver module
- Built-in collision detection module
- S-57 international standard electronic navigational chart
- Rapid rescue request using SOS button for emergency case
- Interface with V-Pass, Radar and transducer
- Screen resolution : 1280 x 800
- Supporting language : English / Korean
